100% Clear Energy

A Smart Mircogrid Integrated Solution

Troncubes home energy storage system adopts modular design, and the products include wall-mounted four and stacked that can be used in different application scenarios, which increase the system voltage and capacity by connecting battery modules in series and parallel.

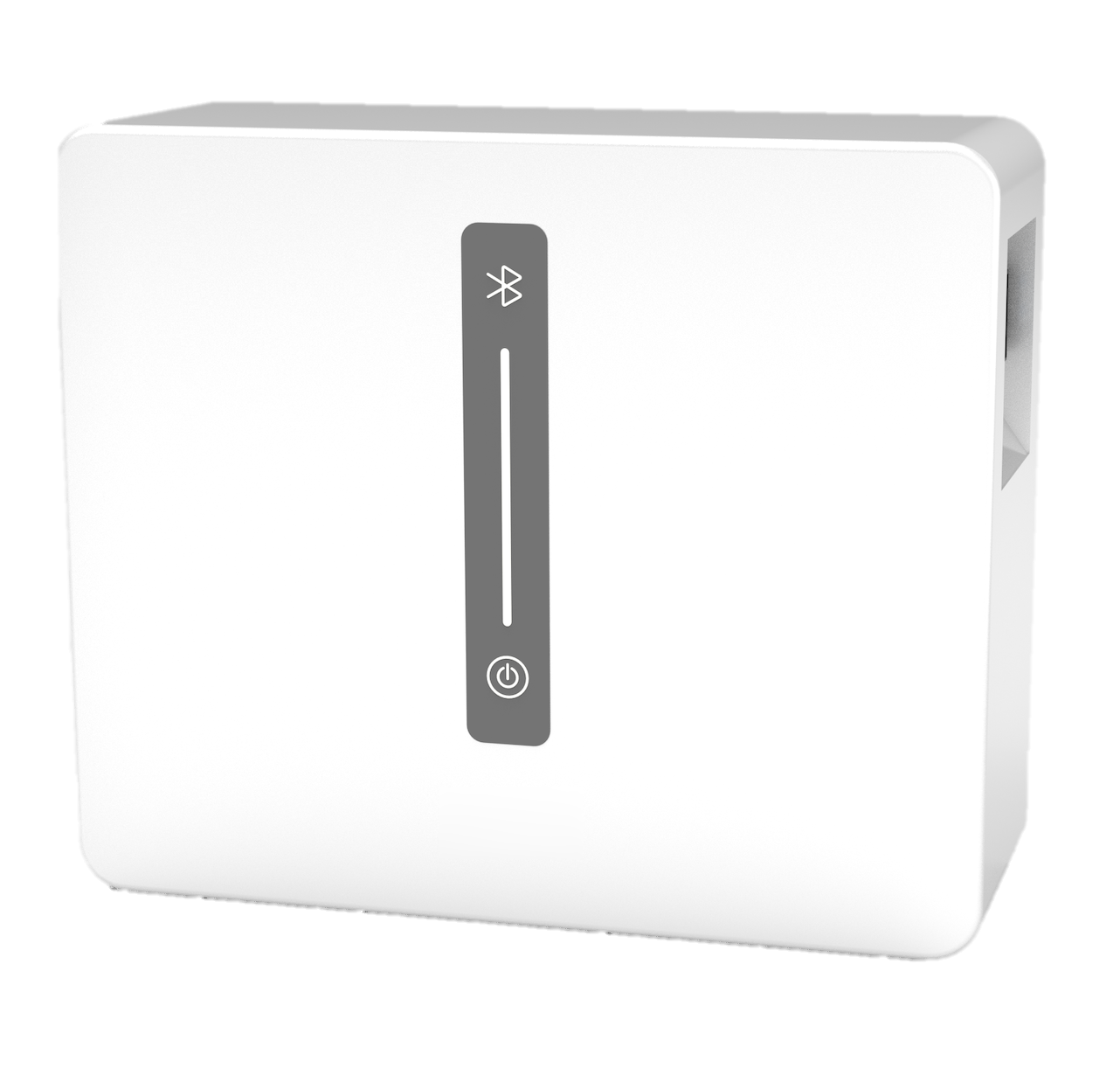

Household ESS-LV Wall-Mounted

5120WM is mainly used in residential energy storage system, available for wall-mounted and normal placed .

  • Stable quality and long-life LiFePO4 cell
  • Maximum 15 units parallel connection
  • Support CAN and Bluetooth
  • LED power column display for SOC

    • Specs

    Nominal Voltage（V） Nominal Capacity(Ah)
    51.2 100
    Dimension(mm) Combination
    550*460*197 16S1P
    Weight (Kg) Discharge Voltage (V)
    52 44.8 ~ 57.6
    Charge Voltage (V) MAX Charge  current (A)
    57.6V 50
    MAX Discharge  current (A) Working Temperature
    100 0℃~50℃ Charge; -10℃~50℃ Discharge
    Cycle Life Communication
    >4,000 (25℃ 0.5C 90% DOD) RS485，CAN，Bluetooth

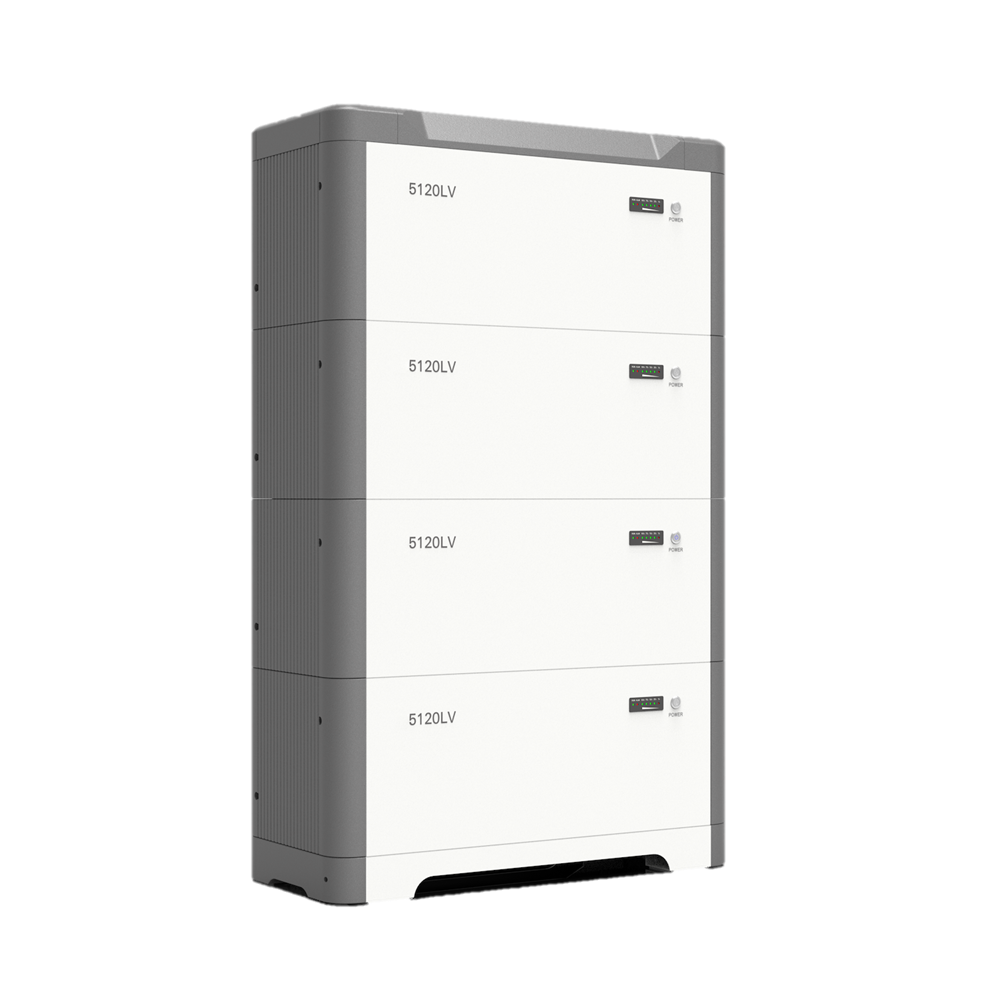

    Residential ESS-LV Stack

    Stacked ESS products are mainly used in low-voltage applications such as residential energy storage systems, industrial and commercial backup systems, and base station backup systems.

  • Support parallel connection for more low-voltage and large-capacity scenarios
  • Adopts modularization stacking for stacking and paralleling to save space
  • 2-5 stacked parallel connection, multiple battery clusters can be paralleled
  • IP65, hidden wiring, safe and reliable
  • Stable quality and long-life LiFePO4 cell

    • Specs

    Nominal Voltage（V） Nominal Capacity(Ah)
    51.2 100*4
    Dimension(mm) Nominal energy
    1230*640*255 20.48
    Weight (Kg) Discharge Voltage (V)
    190 44.8 ~ 57.6
    Charge Voltage (V) MAX Discharge  current (A)
    57.6V 100
    MAX Charge  current (A) Working Temperature
    80 0℃~50℃ Charge; -10℃~50℃ Discharge
    Cycle Life Communication
    >6,000 (25℃ 0.5C 90% DOD) RS485，CAN
    Peak Charge Power (W)
    >10kw@30S

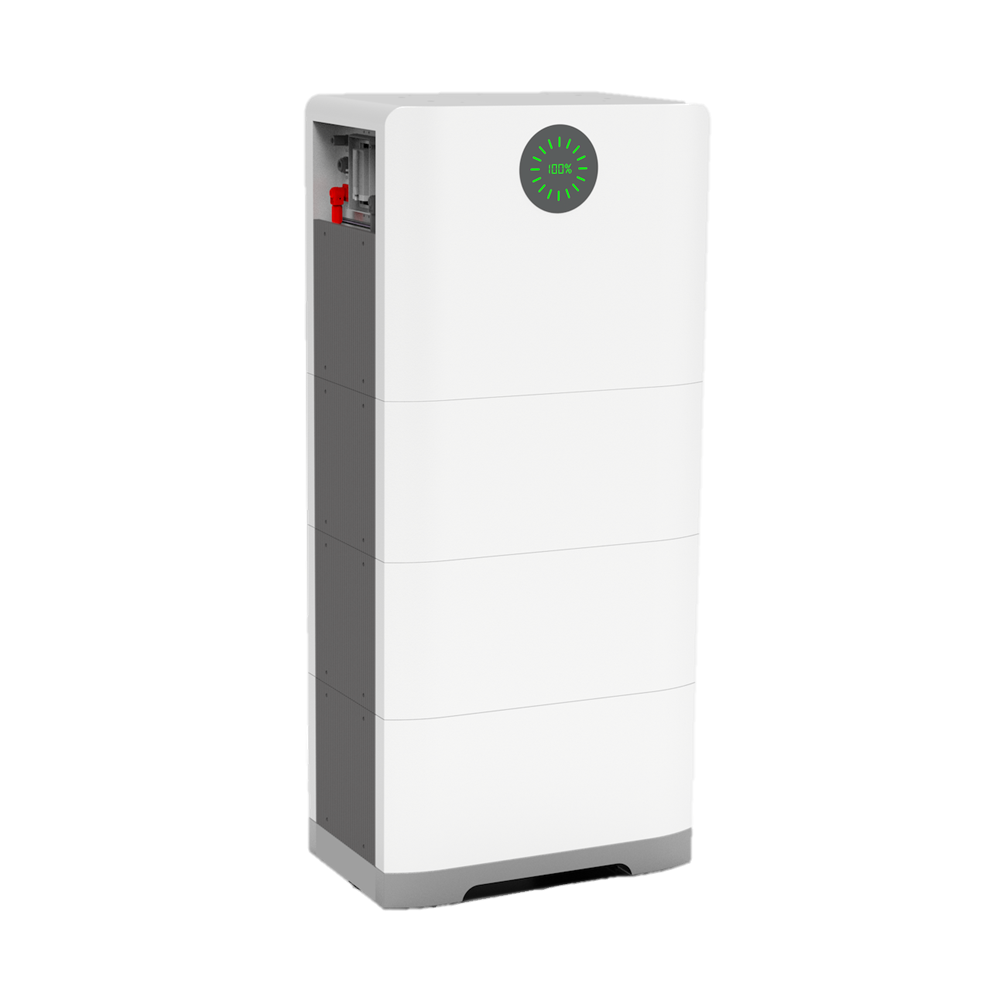

    Residential ESS-HV Stack

    Stacked ESS products are mainly used in high-voltage applications such as residential energy storage systems, industrial and commercial backup systems, and base station backup systems.

  • Series connection design to meet more high-voltage scenarios
  • Adopts modularization stacking for stacking and paralleling to save space
  • 2-5 stacked series connection, multiple battery clusters can be paralleled
  • IP65, hidden wiring, safe and reliable
  • Stable quality and long-life LiFePO4 cell

    • Specs

    Module STP1000A-2S STP1500A-3S STP1500A-4S
    Battery capacity 50Ah 50Ah 50Ah
    System energy 10.24KWh 15.36KWh 20.48KWh
    System Operation Voltage 179.2~230.4 Vdc 268.8~345.6 Vdc 358.4~460.8 Vdc
    Nominal voltage 204.8V 307.2V 409.6V
    Charging voltage 230.4V 345.6V 460.8V
    Charge Current (Max.) 35A 35A 35A
    Discharge Current (Max.) 35A 35A 35A
    Self-Consumption Power 6W 6W 6W
    Discharge operating temperature range -20-60℃ -20-60℃ -20-60℃
    Charge operating temperature range 0-55℃ 0-55℃ 0-55℃
    Dimension(W*D*H, mm) 640*255*700mm 640*255*950mm 640*255*1200mm
    Communication RS485/CAN RS485/CAN RS485/CAN
    Protection Class IP65 IP65 IP65
    Weight (kg) 130KG 175KG 220KG
    Operation Life 8 years 8 years 8 years
    Storage Temperature 0~50℃ 0~50℃ 0~50℃

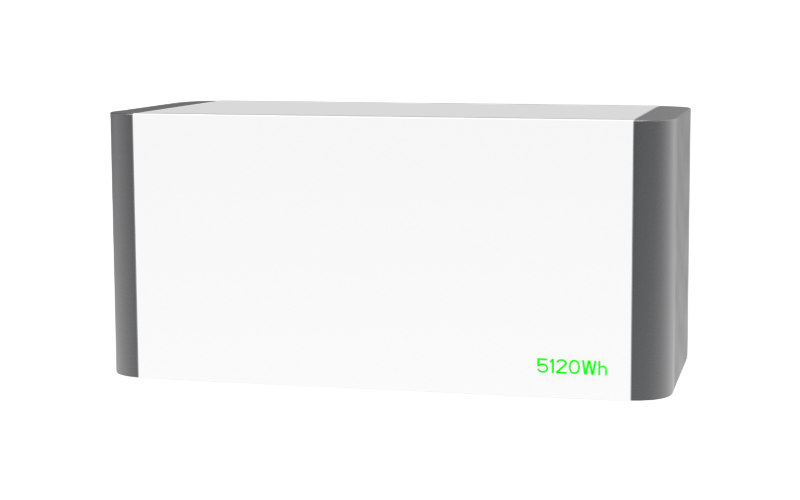

    HV Stack ESS - Slave

    Stacking design is flexible matching of energy storage units and capacity expansion on demand. Integrated home appliance design is exquisite and beautiful and easy to install.

    Specs

    Nominal Voltage（V） Module Typical Capacity(Ah)
    102.4V 50Ah
    Voltage Range Module Typical Energy
    89.6V~115.2V 5.12KWh
    Combination way Standard Charge Voltage
    32S1P 115.2V
    Charging operating temperature range Discharging operation temperature range
    0-45℃ -20-60℃
    Recommend operating temperature range Communication
    23℃±2℃ RS485/CAN
    Cycle Life Protection degree
    3000cycles(0.5C/0.5C,≥80%) IP65
    Dimension(W*D*H, mm) Weight (Kg)
    630*270*286.5±2 45
